Detect wear before it becomes downtime
Predictive maintenance uses continuous vibration measurement to recognise imbalance, misalignment, bearing wear and loose components early. Instead of fixed service intervals or unplanned stops, maintenance is scheduled when the data shows it is needed.
AMCORIS supplies Epson vibration sensors and accelerometers and supports you from sensor selection and evaluation to integration into your monitoring system.
QUICK ANSWER
Vibration sensor or accelerometer?
Machine vibration severity is commonly assessed as RMS vibration velocity in the 10–1000 Hz band (ISO 20816). The Epson M-A342VD10 and M-A542VR10 vibration sensors output velocity and displacement directly as raw, RMS and peak-to-peak values, so the host does not need to integrate acceleration data. For low-frequency structural vibration or when your system processes raw acceleration itself, a low-noise accelerometer such as the M-A352AD10 (0.2 µg/√Hz) is the better choice.
FROM DATA TO DECISION
How vibration monitoring prevents unplanned stops
Most mechanical faults change the vibration signature of a machine long before it fails. Continuous monitoring makes these changes visible, so worn bearings, imbalance or loose mountings are found during operation instead of after a breakdown.
1
Measure
Three-axis vibration at the bearing housing, gearbox or drive.
2
Process
Velocity and displacement as RMS and peak-to-peak values, calculated in the sensor.
3
Trend
Compare against baselines and limits to see changes over weeks and months.
4
Act
Plan maintenance when the trend shows it, not by the calendar.
Sources: Epson news release of 24 Nov 2021 on the M-A342VD10 and M-A542VR10 (corporate.epson); ISO 20816-1 for vibration severity evaluation.
SENSOR SELECTION

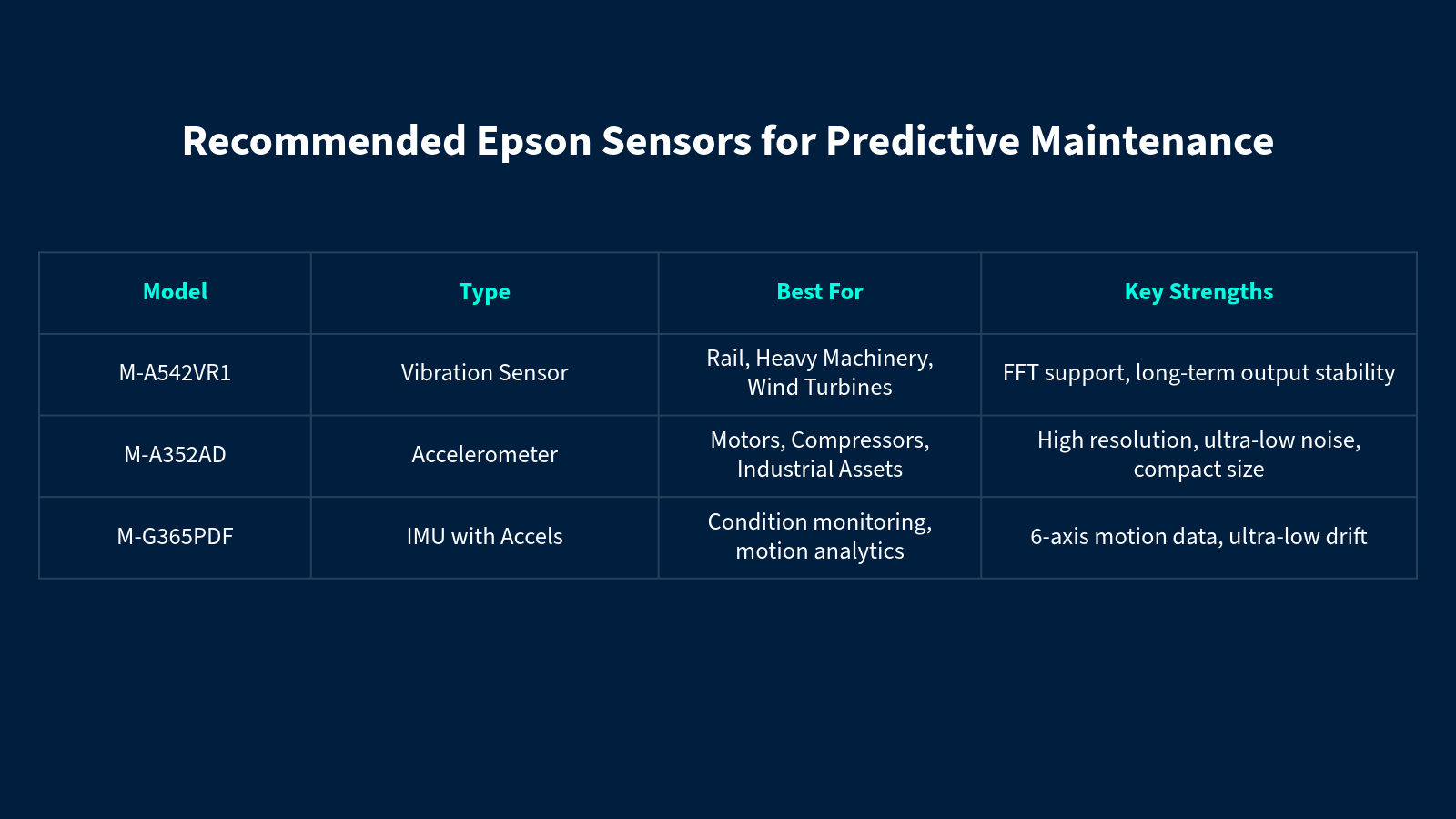

Which Epson sensor for which monitoring task
All sensors measure three axes with a digital interface. Vibration sensors deliver ready-to-use velocity and displacement values; accelerometers deliver raw acceleration for your own signal processing.
M-A542VR10On request
Vibration sensor · RS-422 · IP67
Motors and drives in harsh or outdoor environments, e.g. floodgates and pumps.
Product details →
M-A342VD10On request
Vibration sensor · UART/SPI
Compact integration into machines and IIoT condition monitoring nodes.
Product details →
M-A352AD10Available online
Accelerometer · UART/SPI · 0.2 µg/√Hz
Raw acceleration for your own FFT and analytics, plus low-frequency vibration.
Buy now →
M-A552AR10On request
Accelerometer · RS-422 · IP67
Long cable runs and heavy industrial machinery.
Product details →M-A552AC10On request
Accelerometer · CANopen · IP67
Networked monitoring of several measuring points on one bus.
Product details →
M-A370AD10On request
Accelerometer · UART/SPI · ultra-low noise
Very weak vibration on structures and slow-running equipment.
Product details →FROM AMCORIS PROJECTS
Integration examples
Epson sensors integrated into real-world monitoring of bridge and floodgate drive infrastructure, where reliable long-term vibration data supports maintenance decisions.
-
Challenge
Bridge Vibration Monitoring
Detecting changes in vibration behaviour that could indicate abnormal structural or mechanical conditions and require further investigation.
-
Solution
Bridge Vibration Monitoring
An Epson MEMS vibration sensor was integrated into a dedicated monitoring unit to continuously capture vibration data for condition monitoring and analysis.
-
Result
Bridge Vibration Monitoring
The result was reliable continuous vibration monitoring, providing high-quality data to support condition assessment and early identification of changes in vibration behaviour.
M-A370AD10
-
Challenge

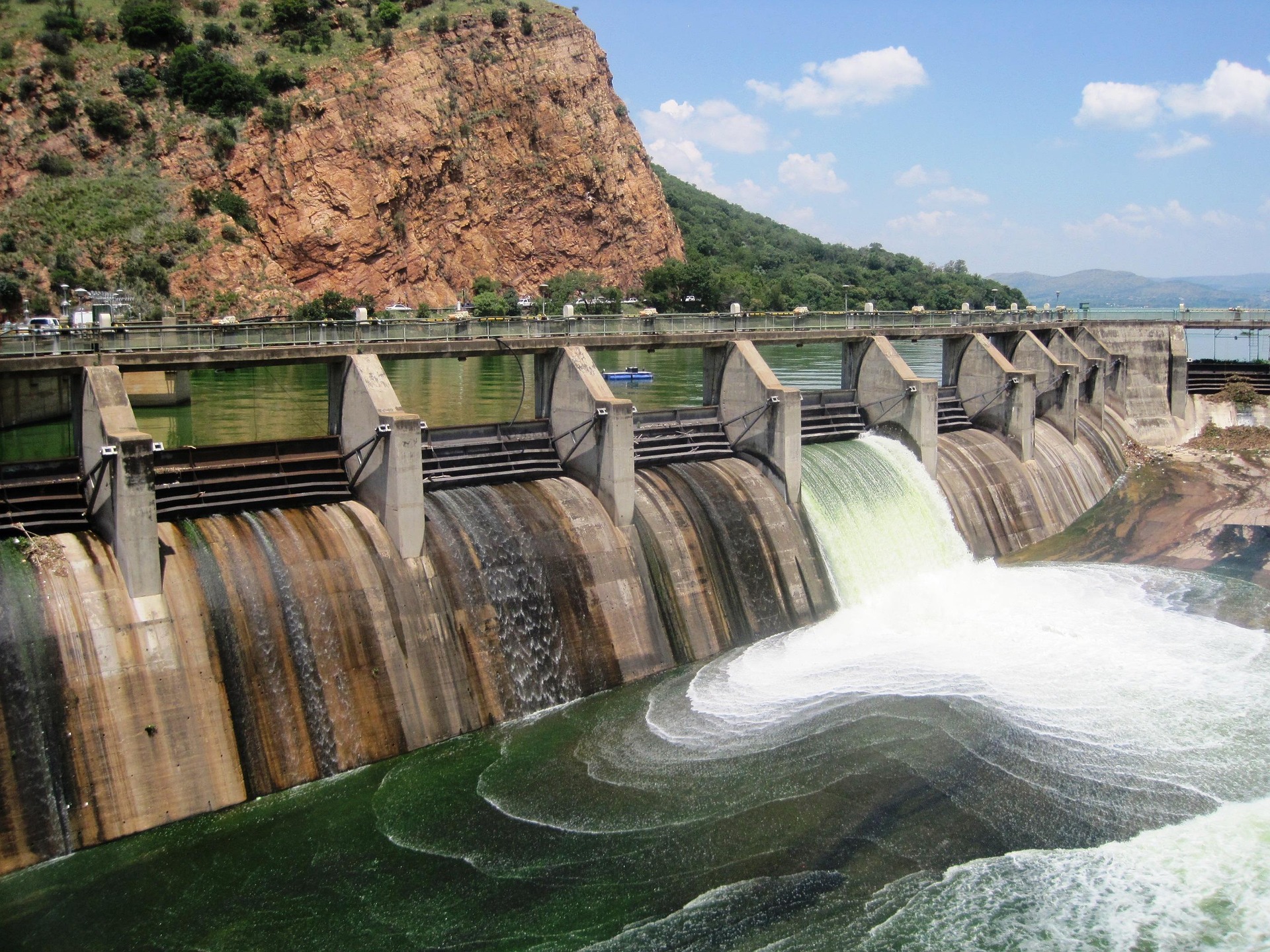

Dam & Floodgate Vibration Monitoring
Monitoring critical equipment and infrastructure for changes in vibration behaviour that could indicate developing mechanical or structural issues.
-
Solution
Dam & Floodgate Vibration Monitoring
The Epson M-A542VR10 was integrated for three-axis vibration monitoring, providing reliable digital measurement data through its RS-422 interface.
-
Result
Dam & Floodgate Vibration Monitoring
The result was continuous vibration monitoring that provides valuable data for assessing equipment condition and supporting maintenance decisions.
M-A542VR10
WHY AMCORIS
Why engineers choose AMCORIS
01
Ready-to-use condition values
Velocity and displacement are calculated inside the sensor.
02
Long service life
MTBF of 87,600 h specified by Epson.
03
Application engineering
Sensor selection, evaluation kits and integration support.
04
Robust option
M-A542VR10 with IP67 and RS-422.
QWhat do Epson vibration sensors output?
Velocity (10–1000 Hz) and displacement (1–100 Hz) on three axes, as raw values, RMS or peak-to-peak.
QVibration sensor or accelerometer?
Choose a vibration sensor for standard condition values directly from the sensor. Choose an accelerometer such as the M-A352AD10 for raw data, your own FFT analysis or very low frequencies.
QWhich interface should I choose?
UART/SPI for compact integration into machines and gateways, RS-422 with IP67 for long cables and harsh environments.
QCan I test the sensors before ordering?
Yes. Request an Epson evaluation kit from AMCORIS. The M-A352AD10 can also be ordered directly in our online shop.
More Epson Accelerometer & Vibration Sensors
EVALUATION KIT
Test it in your own system
Epson evaluation kits are available from AMCORIS as a free loan for qualified projects. Share a few details about your application and we prepare the right kit and support you during the evaluation.
✓Free loan for qualified projects
✓Help with model selection and set-up
✓Direct line to our application engineers
