Reliable vibration data for structures that must not fail
Structural health monitoring (SHM) uses continuous vibration measurement to assess the condition and dynamic behaviour of bridges, buildings, dams and heritage structures over time. Accurate data helps engineers detect changes, identify anomalies and plan inspection and maintenance.
AMCORIS supplies Epson quartz MEMS (QMEMS) accelerometers and vibration sensors and supports you from sensor selection to integration.
QUICK ANSWER
Which accelerometer is right for SHM?
The sensor's self-noise decides whether weak ambient vibrations and higher structural modes can be identified. An independent study by Italy's National Institute of Geophysics and Volcanology (INGV) with Epson recommends a self-noise below 1 µg/√Hz for SHM and below 0.5 µg/√Hz for reliable operational modal analysis (OMA). The Epson M-A370 measured 0.02 µg/√Hz in the 1–10 Hz band; the M-A352 is specified at 0.2 µg/√Hz.
WHY SELF-NOISE MATTERS
Below the noise floor, structural modes disappear
Structures under ambient excitation move in the micro-g range. If the sensor's own noise is higher than the structural response, modes vanish in the noise floor and changes over time cannot be detected reliably. Epson's QMEMS sensors convert acceleration into the frequency change of a quartz resonator and reach noise levels previously reserved for force-balance accelerometers. In the INGV study, conventional capacitive MEMS accelerometers showed clearly higher self-noise than the Epson M-A370.
Self-noise in µg/√Hz, log scale. Shorter is better. Dashed lines: INGV targets.
Epson M-A370
Epson M-A352
Sources: Patanè et al., Sensors 2026, 26, 5528, doi.org/10.3390/s26175528 (open access, CC BY); Epson M-A352 specification.
INDEPENDENTLY VALIDATED
Proven on castles, bridges and seismic networks
INGV, Seiko Epson and Epson Europe Electronics evaluated Epson QMEMS accelerometers in the lab and in long-term field use. According to the authors, the M-A370 delivers data quality comparable to engineering-grade force-balance accelerometers.
United Kingdom · M-A370
Durham Castle clock tower
Ambient vibration testing of a heritage structure.
United Kingdom · M-A370
Cable-stayed pedestrian bridge
Operational modal analysis of a steel footbridge.
Ragusa, Italy · M-A352
Papa Giovanni XXIII arch bridge
Long-term SHM of a reinforced-concrete arch bridge.
Campi Flegrei, Italy · M-A370
Residential buildings
Structural monitoring in a volcanic area.
Italy · M-A352
Urban Seismic Observatories
Catania, Campi Flegrei, Messina–Reggio Calabria, Potenza and others; 50+ units in Campi Flegrei alone.
These projects were carried out by INGV and Epson. AMCORIS supplies the same sensors and supports their integration.
Read the study →SENSOR SELECTION

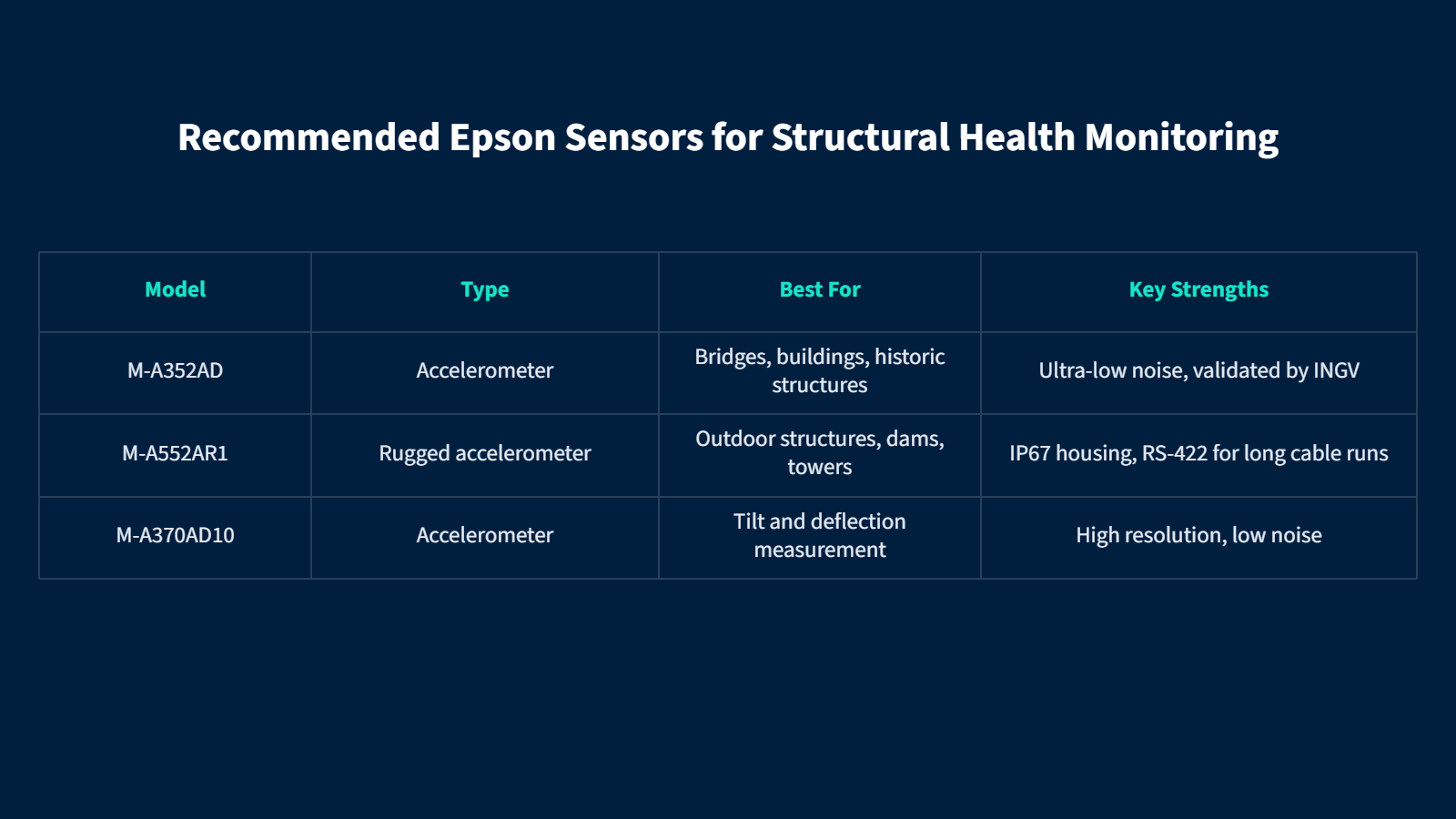

Which Epson sensor for which SHM task
All sensors measure three axes with a digital interface. Choose by noise level, interface and installation environment.
M-A352AD10Available online
UART/SPI · 0.2 µg/√Hz
Bridges, buildings and dense seismic networks.
Buy now →
M-A370AD10On request
UART/SPI · 0.02 µg/√Hz
Ultra-low-noise OMA, heritage structures, quiet sites.
Product details →
M-A552AR10On request
RS-422 · IP67
Long cable runs and harsh industrial environments.
Product details →
M-A542VR10On request
RS-422 · vibration sensor · IP67
Drives, gates and machinery on the structure.
Product details →
M-A342VD10On request
UART/SPI · vibration sensor
Compact monitoring of machinery and equipment.
Product details →FROM AMCORIS PROJECTS
Integration examples
Epson sensors integrated into real-world monitoring of bridge and floodgate infrastructure, where reliable long-term vibration measurement is essential.
-
Challenge
Bridge Vibration Monitoring
Continuously assessing the dynamic behaviour of a bridge to identify changes in structural response over time.
-
Solution
Bridge Vibration Monitoring
An Epson MEMS vibration sensor was integrated into a dedicated monitoring unit to capture structural vibration data for long-term analysis.
-
Result
Bridge Vibration Monitoring
The system provides reliable vibration data that supports structural assessment and long-term monitoring of the bridge.
M-A352AD10
-
Challenge
Floodgate Drive Monitoring
Monitoring the motors that open and close the gates of a lock and floodgate installation, where unplanned downtime affects critical water infrastructure.
-
Solution
Floodgate Drive Monitoring
An Epson M-A542VR10 vibration sensor with RS-422 interface was mounted on the gate drive motors to continuously capture three-axis vibration data.
-
Result
Floodgate Drive Monitoring
Early detection of wear on the gate drives supports condition-based maintenance and reliable operation of critical water infrastructure.
M-A542VR10
WHY AMCORIS
Why engineers choose AMCORIS
01
Validated sensors
Epson QMEMS accelerometers evaluated by INGV on bridges, buildings and seismic networks.
02
Available online
The M-A352AD10 can be ordered directly in our shop.
03
Application engineering
Sensor selection, evaluation kits and integration support.
04
Built for the field
IP67 variants with RS-422 or CANopen.
QWhich accelerometer for bridge and building monitoring?
For most bridges and buildings, the M-A352AD10 with 0.2 µg/√Hz is the right start. For very quiet structures and ambient vibration testing, the M-A370AD10 goes further.
QWhy does sensor self-noise matter in SHM?
Ambient vibration of large structures is very weak. The sensor's own noise has to stay well below it, otherwise natural frequencies and damping cannot be identified reliably.
QCan the same sensors measure tilt?
Yes. Near level, 1 µg corresponds to about 1 µrad of tilt. The M-A552 series outputs tilt angles directly.
QCan I test the sensors before ordering?
Yes. Request an Epson evaluation kit from AMCORIS. The M-A352AD10 can also be ordered directly in our online shop.
More Epson Accelerometer & Vibration Sensors

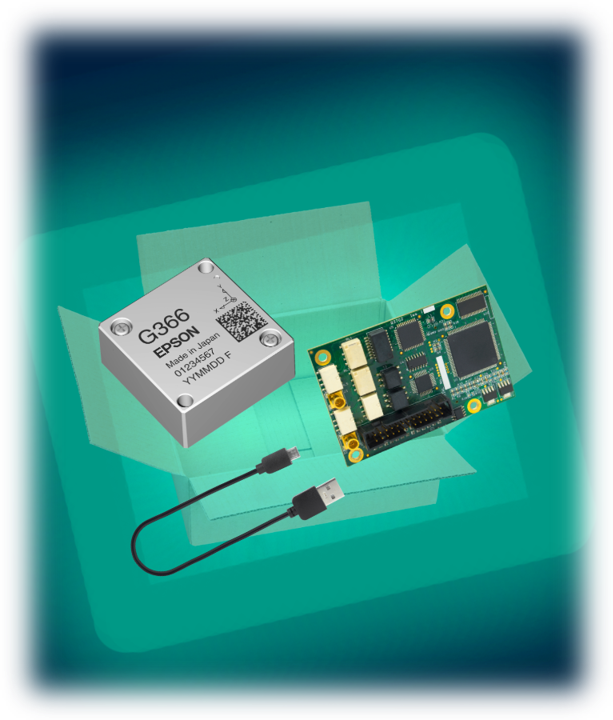

EVALUATION KIT
Test it in your own system
Epson evaluation kits are available from AMCORIS as a free loan for qualified projects. Share a few details about your application and we prepare the right kit and support you during the evaluation.
✓Free loan for qualified projects
✓Help with model selection and set-up
✓Direct line to our application engineers
